一、基础知识
1. binder机制简介
binder是进程间通信的一种方式。在操作系统中，分为内核空间和用户空间，每个app都运行在自己的用户空间，binder机制具体实现不做深入分析；
在binder机制中，进行进程通信的两方，可分别称他们为Cient进程和Server进程；Cient进程和Server进程是由具体场景而定的，一个进程即可以是Cient进程，也可以是Server进程。
2. ServiceManager
ServiceManager负责把Binder Server注册到一个容器中，这样当有Client进程想与Server进程通信时，ServiceManager就可以从查找表中找到Binder Server，并返回Binder Server的代理对象给Client进程。
3. ActivityManagerService
ActivityManagerService是一个系统服务进程，四大组件的启动方式都是通过binder的方式与ActivityManagerService通信完成的；
ActivityManagerService将自己注册到ServiceManager的代码如下(本文分析基于android-29源码)：
public class ActivityManagerService extends IActivityManager.Stub {public void setSystemProcess() {ServiceManager.addService(Context.ACTIVITY_SERVICE, this, /* allowIsolated= */ true,DUMP_FLAG_PRIORITY_CRITICAL | DUMP_FLAG_PRIORITY_NORMAL | DUMP_FLAG_PROTO);}
}
注册完成之后，其他进程就可通过如下方式获得ActivityManagerService的代理：
public class ActivityManager {public static IActivityManager getService() {return IActivityManagerSingleton.get();}private static final Singleton<IActivityManager> IActivityManagerSingleton =new Singleton<IActivityManager>() {@Overrideprotected IActivityManager create() {final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE);final IActivityManager am = IActivityManager.Stub.asInterface(b);return am;}};
}
以上代码，可以看出ActivityManager封装了对ActivityManagerService的调用，通过ActivityManager.gerService()即可获得对ActivityManagerService的调用。
4. ActivityThread、ApplicationThread傻傻分不清楚
ActivityThread就是UI线程，是在APP启动时创建的；它包含一个static的main()方法如下所示(后面会详细分析)：
public final class ActivityThread{// 后面会重点分析Instrumentation mInstrumentation;public static void main(String[] args) {// 省略部分代码...Looper.prepareMainLooper();// ...ActivityThread thread = new ActivityThread();thread.attach(false, startSeq);// ...Looper.loop();}private void attach(boolean system, long startSeq) {mInstrumentation = new Instrumentation();// ...mInstrumentation.basicInit(this);ContextImpl context = ContextImpl.createAppContext(this, getSystemContext().mPackageInfo);mInitialApplication = context.mPackageInfo.makeApplication(true, null);}
}
ApplicationThread是ActivityThread的内部类，并不是一个线程，可用来代表当前APP进程(可能这就是它叫Thread的原因吧)，由以下代码可分析出app间进程通信时，获得另一个app进程也是通过binder来获取其代理实现的；
private class ApplicationThread extends IApplicationThread.Stub {// 省略部分代码...
}
5. Instrumentation
instrumentation
英 [ˌɪnstrəmenˈteɪʃn] 美 [ˌɪnstrəmenˈteɪʃn]
n.(一套)仪器，仪表;器乐谱写
Instrumentation源码解释如下：
/*** Base class for implementing application instrumentation code. When running* with instrumentation turned on, this class will be instantiated for you* before any of the application code, allowing you to monitor all of the* interaction the system has with the application. An Instrumentation* implementation is described to the system through an AndroidManifest.xml's* <instrumentation> tag.*/
可以大概理解为所有与application有关的调用都会通过Instrumentation这样一个仪器来方便地观察到；换句话说就是，所有有关application的调用实际上都会通过Instrumentation；看一下其源码就可以看到它里面完成了许多功能：
public class Instrumentation {private ActivityThread mThread = null;private MessageQueue mMessageQueue = null;private List<ActivityMonitor> mActivityMonitors;public Application newApplication(ClassLoader cl, String className, Context context) {}public Activity newActivity(ClassLoader cl, String className,Intent intent) {}public void callActivityOnNewIntent(Activity activity, Intent intent) {}public ActivityResult execStartActivity(){}}
二、Activity启动流程分析

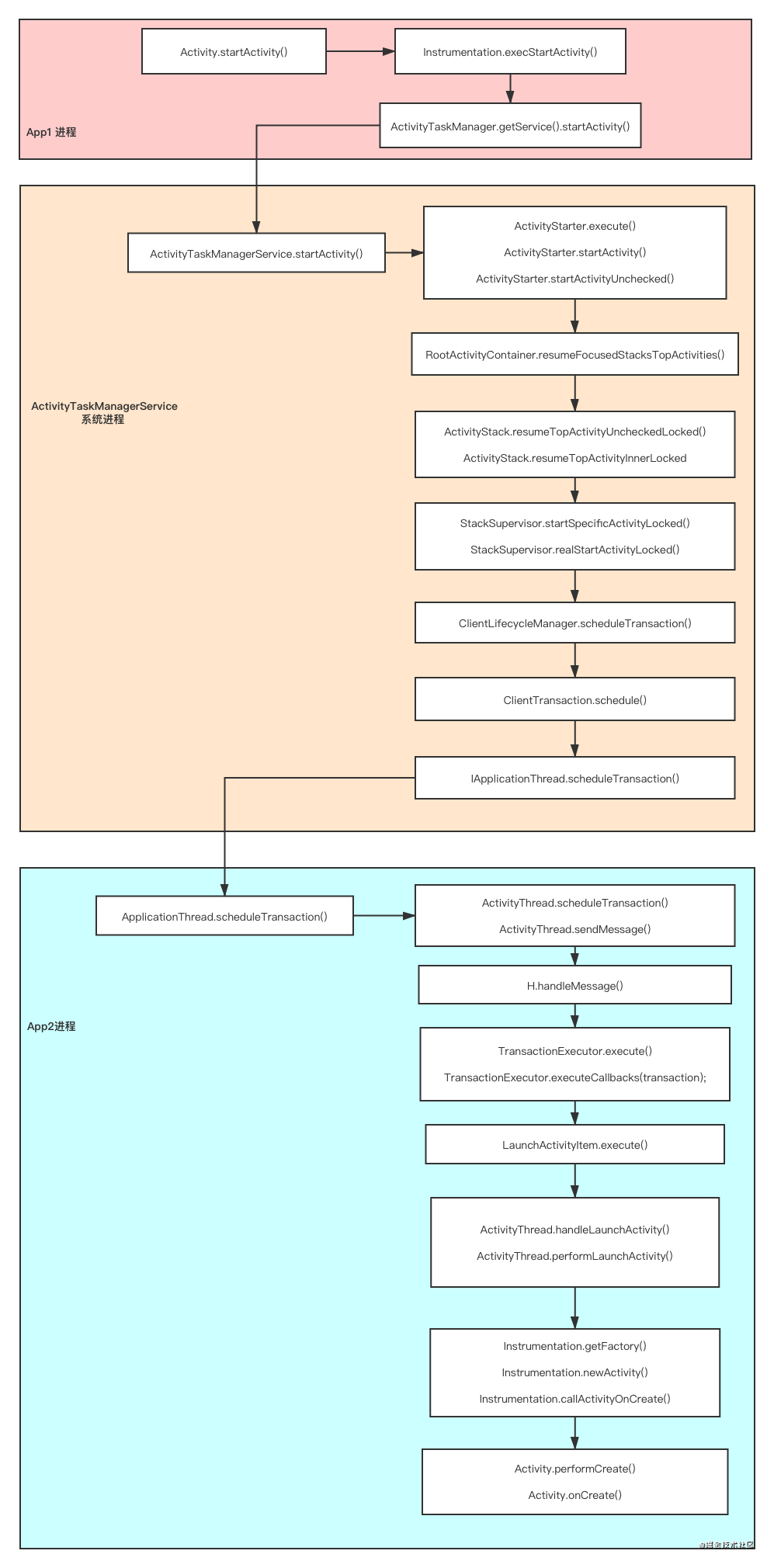

例如App1要启动App2的一个Activity；Activity启动流程分析如下：
1. App1中的SampleActivity1启动App2的SampleActivity2
public class SampleActivity1 {public void onClick() {Intent intent = getPackageManager().getLaunchIntentForPackage("com.app2.sample");startActivity(intent);}
}
2. Activity源码分析
public class Activity {public void startActivity(Intent intent) {this.startActivity(intent, null);}public void startActivity(Intent intent, @Nullable Bundle options) {// ...startActivityForResult(intent, -1);}public void startActivityForResult(@RequiresPermission Intent intent, int requestCode, @Nullable Bundle options) {// 省略部分代码...options = transferSpringboardActivityOptions(options);Instrumentation.ActivityResult ar = mInstrumentation.execStartActivity(this, mMainThread.getApplicationThread(), mToken, this,intent, requestCode, options);if (ar != null) {mMainThread.sendActivityResult(mToken, mEmbeddedID, requestCode, ar.getResultCode(), ar.getResultData());}}
}
可以看到，Activity的startActivity最终都调用到了Instrumentation里面；
3. Instrumentation源码分析
继续分析Instrumentation的execStartActivity()方法:
public class Instrumentation {/** * 可以看到传递的参数中比较重要的几个：* 1. context who:就是前面的SampleActivity1* 2. IBinder contextThread:传的value是mMainThread.getApplicationThread(),即当前APP进程,这样AMS进程才可以通过IBinder与App1进程通信(比如将结果返回,就需要binder通信)* 3. IBinder token:又见IBinder,那一定也是别的进程需要通过这个IBinder进行通信* 4. Intent intent:启动参数**/public ActivityResult execStartActivity(Context who, IBinder contextThread, IBinder token, Activity target,Intent intent, int requestCode, Bundle options) {IApplicationThread whoThread = (IApplicationThread) contextThread;// 省略部分代码...try {int result = ActivityTaskManager.getService().startActivity(whoThread, who.getBasePackageName(), intent,intent.resolveTypeIfNeeded(who.getContentResolver()),token, target != null ? target.mEmbeddedID : null,requestCode, 0, null, options);checkStartActivityResult(result, intent);} catch (RemoteException e) {throw new RuntimeException("Failure from system", e);}return null;}
}
可以看到，又继续调用到了ActivityTaskManager.getService().startActivity()里面。
ps. 在android-28源码中是调用到了ActivityManager.getService().startActivity()里面，更老版本android源码中是调用了ActivityManagerNative.getDefault()，原理都类似，都是调用返回一个代理，最终到了系统进程去执行后续调起逻辑。
4. ActivityTaskManager源码分析
@SystemService(Context.ACTIVITY_TASK_SERVICE)
public class ActivityTaskManager {public static IActivityTaskManager getService() {return IActivityTaskManagerSingleton.get();}private static final Singleton<IActivityTaskManager> IActivityTaskManagerSingleton =new Singleton<IActivityTaskManager>() {@Overrideprotected IActivityTaskManager create() {final IBinder b = ServiceManager.getService(Context.ACTIVITY_TASK_SERVICE);return IActivityTaskManager.Stub.asInterface(b);}};
}
可以看出，ActivityTaskManager.getService()调用得到IBinder的proxy继续执行后续代码，这样就就调用到了系统进程里面继续执行；ActivityTaskManager是系统启动期间就注册的一个binder service，其注册代码如下：
@SystemApi
public final class SystemServiceRegistry {static {registerService(Context.ACTIVITY_TASK_SERVICE, ActivityTaskManager.class,new CachedServiceFetcher<ActivityTaskManager>() {@Overridepublic ActivityTaskManager createService(ContextImpl ctx) {return new ActivityTaskManager(ctx.getOuterContext(), ctx.mMainThread.getHandler());}});}
接下来继续分析系统进程中startActivity()的执行步骤；
5. ActivityTaskManagerService源码分析
public class ActivityTaskManagerService extends IActivityTaskManager.Stub {public final int startActivity(IApplicationThread caller, String callingPackage,Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,int startFlags, ProfilerInfo profilerInfo, Bundle bOptions) {return startActivityAsUser(caller, callingPackage, intent, resolvedType, resultTo,resultWho, requestCode, startFlags, profilerInfo, bOptions,UserHandle.getCallingUserId());}int startActivityAsUser(IApplicationThread caller, String callingPackage,Intent intent, String resolvedType, IBinder resultTo, String resultWho, int requestCode,int startFlags, ProfilerInfo profilerInfo, Bundle bOptions, int userId,boolean validateIncomingUser) {// 省略部分代码...// getActivityStartController().obtainStarter返回一个ActivityStarter对象，下面继续分析ActivityStarterreturn getActivityStartController().obtainStarter(intent, "startActivityAsUser").setCaller(caller).setCallingPackage(callingPackage).setResolvedType(resolvedType).setResultTo(resultTo).setResultWho(resultWho).setRequestCode(requestCode).setStartFlags(startFlags).setProfilerInfo(profilerInfo).setActivityOptions(bOptions).setMayWait(userId).execute();}
}
6. ActivityStarter源码分析
ActivityStarter负责处理intent中flag、启动模式等参数；
class ActivityStarter {int execute() {try {// ...return startActivity(mRequest.caller, mRequest.intent, mRequest.ephemeralIntent,mRequest.resolvedType, mRequest.activityInfo, mRequest.resolveInfo,mRequest.voiceSession, mRequest.voiceInteractor, mRequest.resultTo,mRequest.resultWho, mRequest.requestCode, mRequest.callingPid,mRequest.callingUid, mRequest.callingPackage, mRequest.realCallingPid,mRequest.realCallingUid, mRequest.startFlags, mRequest.activityOptions,mRequest.ignoreTargetSecurity, mRequest.componentSpecified,mRequest.outActivity, mRequest.inTask, mRequest.reason,mRequest.allowPendingRemoteAnimationRegistryLookup,mRequest.originatingPendingIntent, mRequest.allowBackgroundActivityStart);} finally {onExecutionComplete();}}private int startActivity(final ActivityRecord r, ActivityRecord sourceRecord,IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,int startFlags, boolean doResume, ActivityOptions options, TaskRecord inTask,ActivityRecord[] outActivity, boolean restrictedBgActivity) {int result = START_CANCELED;final ActivityStack startedActivityStack;try {mService.mWindowManager.deferSurfaceLayout();result = startActivityUnchecked(r, sourceRecord, voiceSession, voiceInteractor,startFlags, doResume, options, inTask, outActivity, restrictedBgActivity);}// ...}private int startActivityUnchecked(final ActivityRecord r, ActivityRecord sourceRecord,IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,int startFlags, boolean doResume, ActivityOptions options, TaskRecord inTask,ActivityRecord[] outActivity, boolean restrictedBgActivity) {// ...mRootActivityContainer.resumeFocusedStacksTopActivities();}
}
接下里继续到RootActivityContainer；
/*** Root node for activity containers.* TODO: This class is mostly temporary to separate things out of ActivityStackSupervisor.java. The* intention is to have this merged with RootWindowContainer.java as part of unifying the hierarchy.* 看样子这个类后面可能会被合入到RootWindowContainer里，不重点分析；*/
class RootActivityContainer {boolean resumeFocusedStacksTopActivities(ActivityStack targetStack, ActivityRecord target, ActivityOptions targetOptions) {if (targetStack != null && (targetStack.isTopStackOnDisplay() || getTopDisplayFocusedStack() == targetStack)) {result = targetStack.resumeTopActivityUncheckedLocked(target, targetOptions);}}
}
7. ActivityStack源码分析
ActivityStack负责管理activity栈和activity的状态，包括根据activity栈的状态决定如何管理activity等，当然activity的启动也是由它来继续完成；
/*** State and management of a single stack of activities.*/
class ActivityStack extends ConfigurationContainer {boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {if (mInResumeTopActivity) {// Don't even start recursing.return false;}boolean result = false;try {// Protect against recursion.mInResumeTopActivity = true;result = resumeTopActivityInnerLocked(prev, options);}}private boolean resumeTopActivityInnerLocked(ActivityRecord prev, ActivityOptions options) {// ...if (next.attachedToProcess()) {if (nextNext != next) {// Do over!mStackSupervisor.scheduleResumeTopActivities();}} else {// Whoops, need to restart this activity!mStackSupervisor.startSpecificActivityLocked(next, true, true);}}
}
8. StackSupervisor源码分析
// TODO: This class has become a dumping ground. Let's
// - Move things relating to the hierarchy to RootWindowContainer
// - Move things relating to activity life cycles to maybe a new class called ActivityLifeCycler
// - Move interface things to ActivityTaskManagerService.
// - All other little things to other files.
// 看样子这部分代码后面也会被RootWindowContainer里面，后面Android源码分析可能要重点分析这个类了 😢
public class ActivityStackSupervisor implements RecentTasks.Callbacks {void startSpecificActivityLocked(ActivityRecord r, boolean andResume, boolean checkConfig) {// Is this activity's application already running?final WindowProcessController wpc =mService.getProcessController(r.processName, r.info.applicationInfo.uid);boolean knownToBeDead = false;if (wpc != null && wpc.hasThread()) {try {// 重点分析realStartActivityLocked(r, wpc, andResume, checkConfig);return;} catch (RemoteException e) {Slog.w(TAG, "Exception when starting activity "+ r.intent.getComponent().flattenToShortString(), e);}// If a dead object exception was thrown -- fall through to// restart the application.knownToBeDead = true;}}boolean realStartActivityLocked(ActivityRecord r, WindowProcessController proc, boolean andResume, boolean checkConfig) {// ...// Create activity launch transactionfinal ClientTransaction clientTransaction = ClientTransaction.obtain( proc.getThread(), r.appToken);// 重点，这里先记住它的callback是LaunchActivityItemclientTransaction.addCallback(LaunchActivityItem.obtain(new Intent(r.intent),System.identityHashCode(r), r.info,// TODO: Have this take the merged configuration instead of separate global// and override configs.mergedConfiguration.getGlobalConfiguration(),mergedConfiguration.getOverrideConfiguration(), r.compat,r.launchedFromPackage, task.voiceInteractor, proc.getReportedProcState(),r.icicle, r.persistentState, results, newIntents,dc.isNextTransitionForward(), proc.createProfilerInfoIfNeeded(),r.assistToken));// Schedule transaction. mService就是ActivityTaskManagerServicemService.getLifecycleManager().scheduleTransaction(clientTransaction);}
}
以上代码分析出，启动activity被封装成transaction由ActivityTaskManagerService中的ClientLifecycleManager进程处理；
9. ClientLifecycleManager源码分析
class ClientLifecycleManager {void scheduleTransaction(ClientTransaction transaction) throws RemoteException {final IApplicationThread client = transaction.getClient();transaction.schedule();if (!(client instanceof Binder)) {// the transaction is executed on client in ActivityThread.transaction.recycle();}}
代码比较明确，就是执行ClientTransaction的内容；接着分析ClientTransaction的代码：
public class ClientTransaction implements Parcelable, ObjectPoolItem {/** Target client. */private IApplicationThread mClient;public void schedule() throws RemoteException {// 重点mClient.scheduleTransaction(this);}
}
以上代码可以看出，最终执行到了mCient的scheduleTransaction()方法；而mClient就是传过来的IApplicationThread，这样就完成了从ActivityTaskManagerService进程到App2进程的调用；
10. ActivityThread源码分析
前面说过ApplicationThread可以代表app所在进程，其他进程访问ApplicationThread是通过IApplicationThread形式的binder代理实现的；ApplicationThread是ActivityThread的内部类，scheduleTransaction()方法最终是由ActivityThread实现；
/*** This manages the execution of the main thread in an* application process, scheduling and executing activities,* broadcasts, and other operations on it as the activity* manager requests.* 继承了ClientTransactionHandler,后面也用分析到*/
public final class ActivityThread extends ClientTransactionHandler {// 重点final H mH = new H();private void sendMessage(int what, Object obj, int arg1, int arg2, boolean async) {Message msg = Message.obtain();msg.what = what;msg.obj = obj;msg.arg1 = arg1;msg.arg2 = arg2;if (async) {msg.setAsynchronous(true);}mH.sendMessage(msg);}private class ApplicationThread extends IApplicationThread.Stub {@Overridepublic void scheduleTransaction(ClientTransaction transaction) throws RemoteException {ActivityThread.this.scheduleTransaction(transaction);}}class H extends Handler {// ...public void handleMessage(Message msg) {if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what));switch (msg.what) {case BIND_APPLICATION:// ...break;case EXIT_APPLICATION:// ...break;case RECEIVER:// ...case CREATE_SERVICE:// ...case BIND_SERVICE:// ...case UNBIND_SERVICE:// ...case STOP_SERVICE:// ...case CONFIGURATION_CHANGED:// ...case DUMP_SERVICE:// ...// 省略...case EXECUTE_TRANSACTION:// 重点final ClientTransaction transaction = (ClientTransaction) msg.obj;mTransactionExecutor.execute(transaction);break;case RELAUNCH_ACTIVITY:handleRelaunchActivityLocally((IBinder) msg.obj);break;case PURGE_RESOURCES:schedulePurgeIdler();break;}}}
}
可见，最终是继承了Handler的内部类H来发送message，并最终由mH完成处理；可以看到H的handleMessage()里面有许多熟悉的消息都是在这里处理的；后面继续分析EXECUTE_TRANSACTION的情况，即mTransactionExecutor.execute(transaction);
11.TransactionExecutor源码分析
/*** Class that manages transaction execution in the correct order.* 事务特性：保证按正确的顺序执行*/
public class TransactionExecutor {public void execute(ClientTransaction transaction) {// 省略部分...final IBinder token = transaction.getActivityToken();executeCallbacks(transaction);executeLifecycleState(transaction);}public void executeCallbacks(ClientTransaction transaction) {// 还记得StackSupervisor中说到的transaction的callback是LaunchActivityItem吗，那后续执行就到了LaunchActivityItem里面item.execute(mTransactionHandler, token, mPendingActions);}
LaunchActivityItem源码如下：
public class LaunchActivityItem extends ClientTransactionItem {@Overridepublic void execute(ClientTransactionHandler client, IBinder token,PendingTransactionActions pendingActions) {Trace.traceBegin(TRACE_TAG_ACTIVITY_MANAGER, "activityStart");ActivityClientRecord r = new ActivityClientRecord(token, mIntent, mIdent, mInfo,mOverrideConfig, mCompatInfo, mReferrer, mVoiceInteractor, mState, mPersistentState,mPendingResults, mPendingNewIntents, mIsForward,mProfilerInfo, client, mAssistToken, mFixedRotationAdjustments);client.handleLaunchActivity(r, pendingActions, null /* customIntent */);Trace.traceEnd(TRACE_TAG_ACTIVITY_MANAGER);}
}
可见，最后又由client执行了handleLaunchActivity，这里的client就是前面的ActivityThread。
12. 又见ActivityThread
那么接下来，继续分析ActivityThread的handleLaunchActivity()吧！
public final class ActivityThread extends ClientTransactionHandler {@Overridepublic Activity handleLaunchActivity(ActivityClientRecord r,// ...final Activity a = performLaunchActivity(r, customIntent);return a;}/** Core implementation of activity launch. */private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {// 省略部分代码...ActivityInfo aInfo = r.activityInfo;Activity activity = null;try {java.lang.ClassLoader cl = appContext.getClassLoader();// 重点代码,可以看到实际上又是Instrumentation新建了activityactivity = mInstrumentation.newActivity(cl, component.getClassName(), r.intent);StrictMode.incrementExpectedActivityCount(activity.getClass());r.intent.setExtrasClassLoader(cl);r.intent.prepareToEnterProcess();if (r.state != null) {r.state.setClassLoader(cl);}} catch (Exception e) {// ...}try {if (activity != null) {// ...activity.attach(appContext, this, getInstrumentation(), r.token,r.ident, app, r.intent, r.activityInfo, title, r.parent,r.embeddedID, r.lastNonConfigurationInstances, config,r.referrer, r.voiceInteractor, window, r.configCallback,r.assistToken);// 又是Instrumentation,下面分析mInstrumentation.callActivityOnCreate(activity, r.state);r.activity = activity;}r.setState(ON_CREATE);}return activity;}
}
里面比较重要的代码是Instrumentation的newActivity()和callActivityOnCreate()方法，下面接着分析；
13. 又见Instrumentation
public class Instrumentation {public Activity newActivity(ClassLoader cl, String className,Intent intent)throws InstantiationException, IllegalAccessException,ClassNotFoundException {String pkg = intent != null && intent.getComponent() != null? intent.getComponent().getPackageName() : null;// 重点，由AppComponentFactory完成Activity的初始化return getFactory(pkg).instantiateActivity(cl, className, intent);}private AppComponentFactory getFactory(String pkg) {if (pkg == null) {return AppComponentFactory.DEFAULT;}if (mThread == null) {return AppComponentFactory.DEFAULT;}LoadedApk apk = mThread.peekPackageInfo(pkg, true);// This is in the case of starting up "android".if (apk == null) apk = mThread.getSystemContext().mPackageInfo;return apk.getAppFactory();}public void callActivityOnCreate(Activity activity, Bundle icicle) {prePerformCreate(activity);// 重点，这里就调用了Activity的performCreate()方法activity.performCreate(icicle);postPerformCreate(activity);}
}
可以看到，Instrumentation通过AppComponentFactory完成Activity的初始化，然后调用了Activity的performCreate()方法；
14. Activity源码分析
public class Activity{final void performCreate(Bundle icicle, PersistableBundle persistentState) {mCanEnterPictureInPicture = true;restoreHasCurrentPermissionRequest(icicle);if (persistentState != null) {// onCreate()方法，重要看到亲人了!onCreate(icicle, persistentState);} else {onCreate(icicle);}writeEventLog(LOG_AM_ON_CREATE_CALLED, "performCreate");mActivityTransitionState.readState(icicle);mVisibleFromClient = !mWindow.getWindowStyle().getBoolean(com.android.internal.R.styleable.Window_windowNoDisplay, false);mFragments.dispatchActivityCreated();mActivityTransitionState.setEnterActivityOptions(this, getActivityOptions());}
}
至此就完成了activity的启动！
三、 总结
